Managing and customising racetracks

Admin → Races → View racetracks

Racetracks are nominally where the buggy race takes place. In practice, they consist of a couple of files — one the background image and the other an SVG file describing the geometry of the path that the buggies will follow. Although these two files can be independent, in practice they are usually closely related because the SVG path follows the track that is depicted in the image. This page describes what you need to know in order to make your own.

The race server is pre-loaded with a few example tracks. If you’re creating your own custom tracks you might not want to use these, so you can suppress them by setting the config setting IS_SHOWING_EXAMPLE_RACETRACKS to No in the “Races” group. Otherwise, you’ll see a button marked Add missing racetracks if any of the example tracks are not in the database.

You can edit existing racetracks or add your own — but note that any new files (JPG or SVG) that you make are not stored on the race server. You have to host them, and provide the URLs here.

Basic components: image, path, length

The racetrack consists of:

  • URL of racetrack image
    The image must be a landscape image twice as wide as it is tall (2:1 aspect ratio). Any graphic format supported by browsers will do, although ideally it should be optimised for size. The example racetracks on the server have URLs that point to the server because those track image files are pre-loaded.

    The example files are 1024 × 512 (pixel dimensions) JPEG files.

  • URL of path SVG
    The path is overlaid on the background image in the replay animation. See more about the SVG specifics below: it must be a closed (loop) path in a 200 × 100 viewport — those dimensions matter because they effect the length of the path (currently there is no scaling factor).

  • Lap length
    This should be the calculated length of the path in the SVG. It’s stored explicitly to avoid having to calculate it every time it’s needed. The View option on the server will show the result of the calculation so you can check it. Make sure you save the same value.

Races copy racetrack URLs

When you create or edit a race and select a racetrack, you are really just copying the data from the racetrack (the two URLs and the implicit lap length) into the race. If you subsequently edit the racetrack, the race won’t change.

How to make your own SVG

Scalable Vector Graphics (SVG) are a web-based standard graphic format. Many drawing applications let you draw a shape and then export to SVG. The unusual thing about the racetrack path is that the file you create ultimately doesn’t display anything — because the path should be invisible. It might be easier to use your drawing package to make the path with a stroke colour, and then edit it afterwards to change it. SVG files are text files, so you can go into a text editor and change the stroke attribute to none, for example.

Detailed requirements of the SVG

Since the length of the path is significant — the “unit” of distance is used in the calculation of how far the buggies move, for example, it’s a good idea to work on a 200 × 100 layout as there’s currently no “scale” option.

The racetrack’s path SVG must contain a single path element that describes a closed loop. The fill and stroke should be none as it’s not used for display — it’s used as the path the buggies are mapped onto during the replay animation.

The start point of the path is significant — it’s where buggies start and end their laps. Buggies will follow the path in the direction described, that is, whether it is a clockwise or anticlockwise track will depend on how you’ve made the SVG.

Viewing the SVG as admin on the server

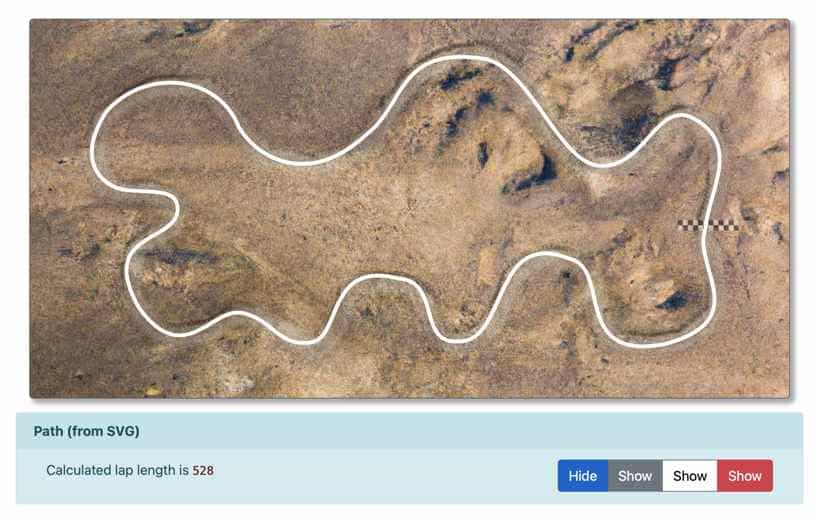

You can inspect the SVG path — which is normally invisible — with the Show buttons when viewing the racetrack on the server. Different colours are offered so the track is clear against whatever background image you’re using.

Example SVG path

This example is from racetrack-03-path-429.svg, one of the example paths on the race server. Note the viewBox attribute, and that the file contains only one path element. The length of the path turns out to be 429 — you can verify this on the server when viewing racetracks.

The buggy race software anticipates only one translate transformation in the path’s transform attribute (it’s used when determining how to place the buggies as well).

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" viewBox="0 0 200 100" text-rendering="geometricPrecision" shape-rendering="geometricPrecision" style="white-space: pre;">
    <path d="M0,0C18.6,0,37.2,0,55.8,0C67,0,73.6,8.2,73.6,17C73.6,29.4667,73.6,39.2085,73.6,51.6752C73.6,63.0752,65.2,69.8,55.8,69.8C27.4,69.8,-1,69.8,-29.4,69.8C-40.2,69.8,-49.6,62.0752,-49.6,51.6752C-49.6,39.2085,-49.6,29.4667,-49.6,17C-49.6,8,-41.8,0,-29.4,0C-19.6,0,-9.8,0,0,0Z" fill="none" stroke="none" stroke-width="0" transform="translate(89.8,15.2)"/>
</svg>
